The case
Rally bike or production bike?

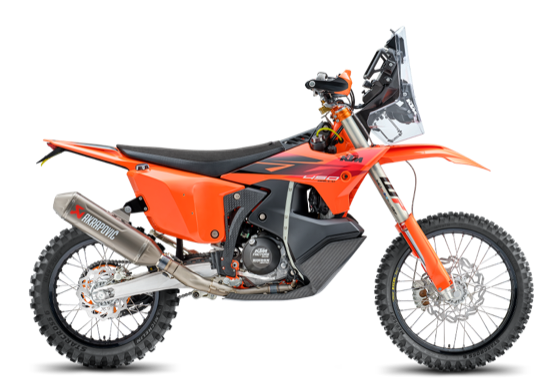

A KTM 450 Rally Replica sells for about thirty-five thousand dollars. A 450 SX-F, XC-F, EXC-F or 500 EXC-F sells for under twelve. So what is really under all that rally gear? We went looking for clues in the one place every part leaves a trail: KTM's own parts books. Every part on every bike has a number, a drawing and a price, and together they show how much of the Rally Replica (RFR) is a production bike underneath.

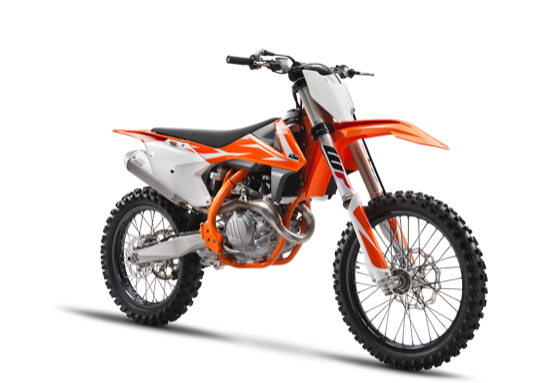

The trail leads to the 2019 and 2020 RFR. It shares the most real parts with the production bikes, and its engine is built around the 2016–2018 450 SX-F/XC-F. Line up the evidence and the RFR engine turns out to be the 2016–2019 KTM 450/500 four-stroke: an EXC bottom end, the SX-F top end, and, from 2025, gearbox ratios of its own.

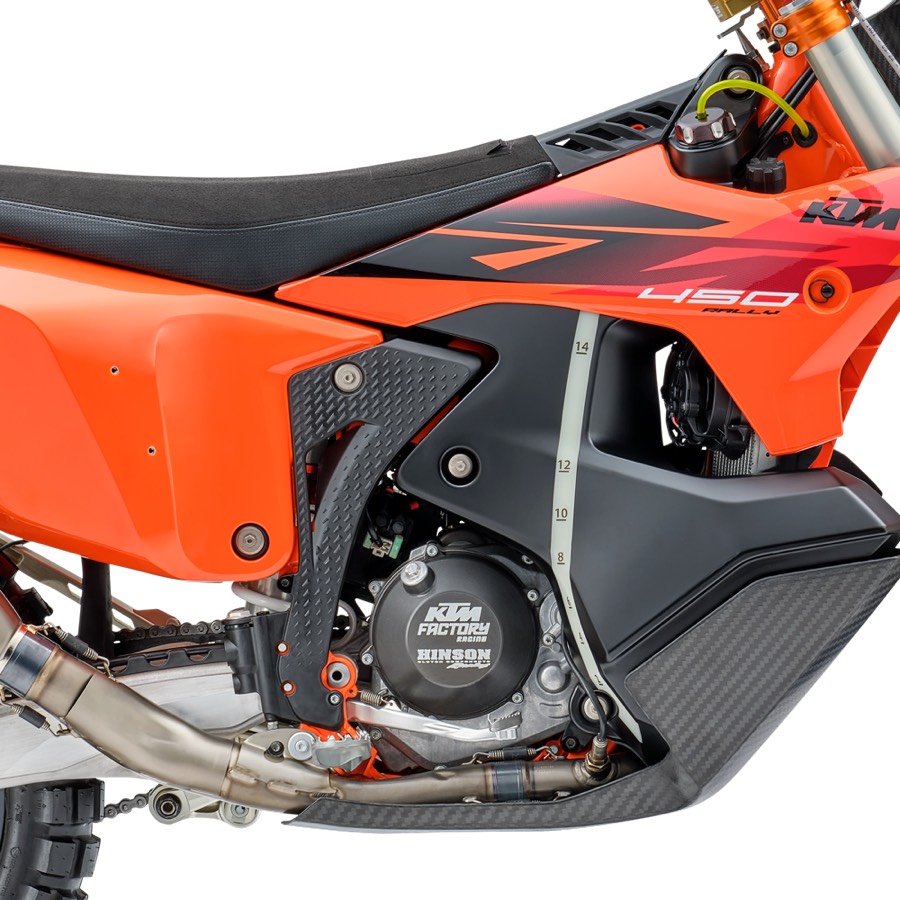

Then comes the best twist. Deep in the heart of the newest Rally Replica beats a ten-year-old supercross engine. 156 of the 2027 RFR's 277 engine parts carry the same numbers as a 2018 450 SX-F, from the engine family KTM brought out for 2016. The motor built for supercross stadiums is still racing across the desert.
And that is the happy ending. When KTM builds a machine for the toughest rally racing in the world, it reaches into the same parts bin as the bike in your garage: the same valves, cam drive, bearings, gearbox and flywheel. The parts trusted with days of flat-out desert stages are the parts in a stock SX-F, XC-F or EXC-F, built in big numbers and refined year after year. That is a big reason both bikes are so strong and last so long.
The line-up
The usual suspects
Photos: KTM.
Cracking the code
A KTM part number is an address
Every KTM number reads project · group · item · version. The project is the bike or engine the part was designed for. Group and item say what the part is and where it goes, on every bike. That is the giveaway: a rally part can carry a new project number, but its group and item still name the production part it stands in for. A trailing M01, M02… marks a reworked production part. Drawing IDs read the same way: year drawn, project, section.
| Part | RFR | Production 450 | Group · item |
|---|---|---|---|
| Cylinder head | 767·36·020·400 | A48·036·020·044 | 36 · 020 |
| Piston | 764·30·007·000 | A48·030·007·100 | 30 · 007 |
| Engine case | 767·30·000·233 | A48·030·000·044 | 30 · 000 |
| Crankshaft | 767·30·518·100 | 794·30·518·200 (450 EXC-F) | 30 · 518 |
| Oil filter cover / RFR adapter | A58·038·041·100 | 773·38·041·200 | 38 · 041 |
| Water pump impeller | 795·35·055·000M01 | 794·35·055·015 | 35 · 055 |
Every Rally Replica, 2011–2027
Which RFR shares the most
We put every Rally Replica from 2011 to 2027 up against every production KTM, Husqvarna and GASGAS. Here is how much of each one turns up on a production bike, bolts and washers left out. EU and US records list different amounts of detail, so compare EU with EU and US with US.
| RFR | Source | All parts | Engine, modified counted | Closest production bike |
|---|---|---|---|---|
| 2011–2012 | EU | 76% | 84–85% | 2008–09 450 XC-F, 2010 450 SX-F |
| 2013–2014 | EU | 78% | 84% | 2008–09 450 XC-F, 2010 450 SX-F |
| 2015–2017 | EU | 77% | 82% | 2013 450 SX-F Factory Ed. |
| 2017 | US | 68% | 80% | 2013 450 SX-F Factory Ed. |
| 2018 | EU | 78% | 82% | 2015 Husqvarna FE 450/501 |
| 2019–2020 | US | 70% | 85% | 2018–19 450 EXC-F Six Days, 500 EXC-F |
| 2021–2022 | EU | 77% | 82% | 2017 450 SX-F Factory Ed., 2019 500 EXC-F Six Days |
| 2023–2024 | US | 67% | 80% | 2019 450 EXC-F Six Days, 2018 450 SX-F/XC-F |
| 2025–2027 | US | 68% | 78% | 2019 450 EXC-F Six Days, 500 EXC-F |
The plot thickens in 2025. The RFR was redesigned and kept only 50% of its part numbers (62% of the motor). Since then it changes little (93% and 97% kept). Fingerprint
The evidence · 2020 RFR unless noted
EXC bottom end, SX-F top end
Bottom end: EXC Fingerprint
- Crankshaft 767·30·518·000 carries the item code of the 450 EXC-F crank 794·30·518·200, not the SX-F crank 794·30·018·200. In production the EXC-F crank already uses the SX-F rod (kit 794·30·015·144). KTM sells no rod for the RFR. Rod: hunch
- Around the crank: the same main bearing NJ207, end-float shims, primary gear 31T, Woodruff key, balancer shaft, starter motor and chain tensioner as the 450 SX-F, 450 EXC-F and 500 EXC-F. The crank seal and a case bushing are M01 versions.
- Flywheel rotor and stator: the enduro parts, "ROTOR EXC 08" 780·39·205·000 and stator 792·39·104·000, from the 500 EXC-F, 450 EXC-F, XC-W and FE 450/501. Same number, same price. A heavier flywheel suits a rally engine. Weight: hunch
- Gearbox, 2019–2020: the 500 EXC-F gearbox gear for gear: six gears, both shafts, three forks, rails, bearings, seals. The smoking gun: both bikes use countershaft drawing
177963362, drawn in 2017 for the 500 EXC-F. Blueprint - Gearbox, 2025–2027: its own gear set 767·33·501·000 and shift drum, with M02 forks. Here the RFR gets its own ratios.
- Shift drum (2020) 794·34·512·000: an earlier version of the 450 EXC-F drum 794·34·512·200.
Top end: SX-F Fingerprint
- Valve train: valves, springs and kit, collets, rocker shafts and the decompressor camshaft are 450 SX-F/XC-F 2013–2018 parts. Some rockers and the 2027 camshaft are M versions.
- Cam drive: timing gear 18T (2009–2018), chain guide and tensioning rail (2015–2019 450 SX-F, XC-F, EXC-F, 500 EXC-F, FE/FC/FS/FX 450, FE 501).
- Bore and piston: the same 95 mm head gasket 794·30·036·010 and cylinder base gasket 794·30·035·000 as the 450 SX-F, 450 EXC-F and 500 EXC-F. The bare RFR cylinder costs exactly what the production "Cylinder + Piston cpl." costs: $963. And the piston? We know it on sight: the 450 SX-F piston. Cylinder: price tag Piston: eyewitness
- Head casting: own number 767·36·020·300, $1,066 against $955 for the 450 SX-F head.
Engine case: production casting Blueprint
- Own number 767·30·000·033, but the same drawing as the 450 SX-F and 500 EXC-F case and the same bearings and seals in the case kit. Same bearings, same bores.
- The tell: the production oil jet 50 M5 (drawing spot 23) is gone, and screw-in plugs sit where the oil jets were (spots 24–26: plug M20×1.5, O-ring, oil-pump needle-bearing ring), with an M02 case gasket.
- Our verdict: same casting, screw-in changes only. Hunch, eyewitness
Oil and cooling
A production pump with a bolt-on cooler
Oil system Fingerprint
- Pump rotors, oil screens, drain plug and seals are production parts. The pump cover, shaft, sprocket 19T, idler gear 33T and pressure spring are M versions of 450 EXC-F (2015–2023) parts. The 15 mm pump rotor comes from the 2006–2013 250 four-strokes.
- Every 2016–2027 450 SX-F/XC-F uses filter 773·38·005·100 and cover 773·38·041·200. In the cover's place (38 · 041) the RFR fits its own cover, or on the 2027 an "oil filter adapter" A58·038·041·100, with its own filter, lines, adapter and cooler. The cooler bolts on where the standard filter cap goes. Bolt-on: eyewitness
- Radiator, guard, fan, thermoswitch and hoses are the RFR's own.
Engine swap
An RFR motor in an FX 450

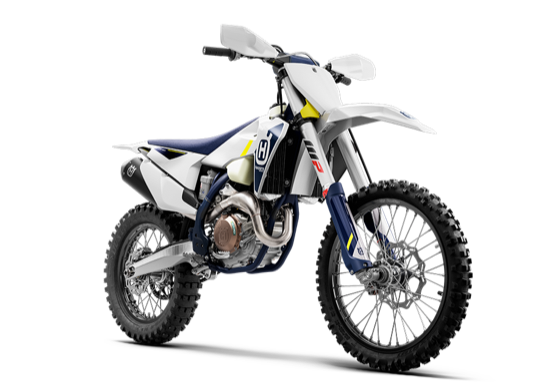

One rider had a Husqvarna FX 450 built with a spare RFR motor. Sounds wild, until you open the parts books: the 2021-era RFR engine against the FX 450, counting identical and modified parts:
| FX 450 | Identical | Modified | |
|---|---|---|---|
| 2019 | 135 | 10 | |
| 2020 | 137 | 10 | |
| 2021 | 139 | 9 | |
| 2022 | 144 | 9 | |
| 2023 (new engine) | 115 | 3 |
A 2019–2022 FX 450 is the likely donor; the 2023 FX 450 has a new engine. Both list an M16×1.5 swingarm pivot through the engine, under different numbers. Fingerprint
Follow the money
What makes a rally part

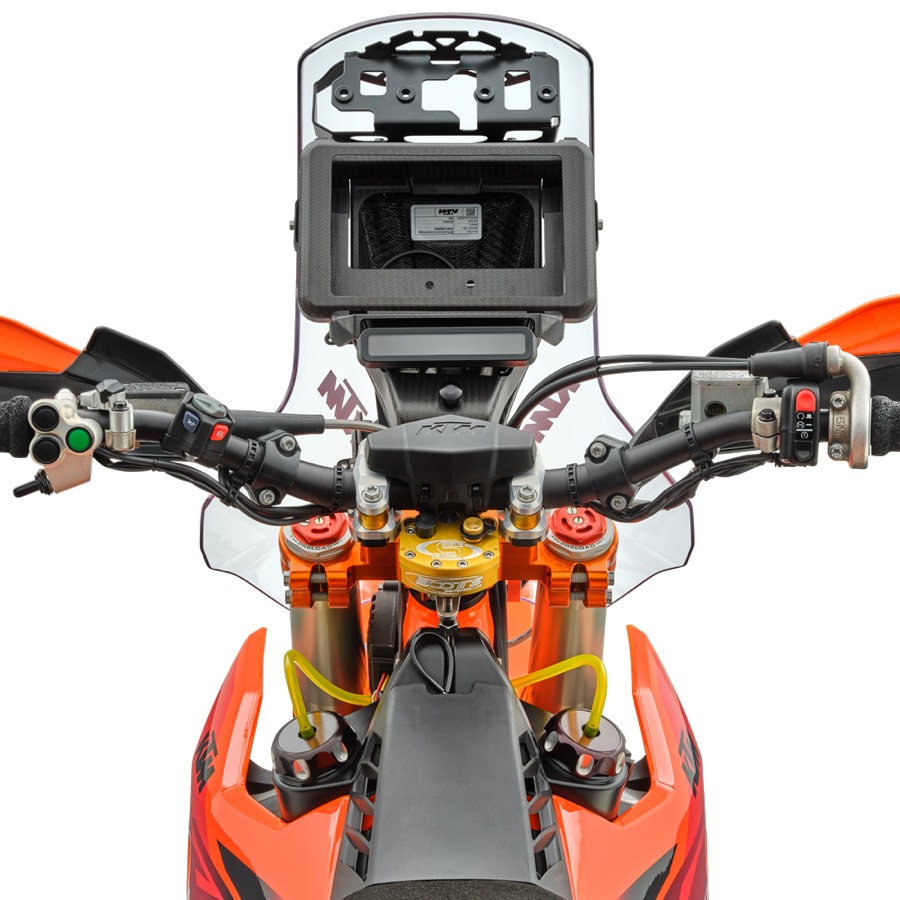

Proven production parts, reworked for the desertOil cooler, roadbook tower, rally tanks, and production pump, clutch and gearbox parts in reworked "M" versions.
Every good case ends with the money. Rally-only parts are made in small numbers, and many are production parts reworked for days of desert racing: the M versions. That work shows in the price. The RFR part against the production part in the same spot: Price tag
| Reworked for the RFR (M) | RFR | Production | × |
|---|---|---|---|
| Oil pump idler gear 33T 794·38·001·033M04 | $287 | $45 | 6.4 |
| Oil plug screw 780·36·024·000M01 | $33 | $9 | 3.9 |
| Oil pump cover 794·38·003·000M02 | $102 | $34 | 3.1 |
| Clutch basket 781·32·001·076M01 | $944 | $453 | 2.1 |
| Shift fork 1–3 794·34·003·100M02 | $157 | $105 | 1.5 |
| Compression spring 794·38·026·000M01 | $13 | $9 | 1.5 |
| Slide bearing 792·34·012·010M01 | $28 | $20 | 1.4 |
| Crank bearing seal 794·30·084·000M01 | $12 | $9 | 1.3 |
| RFR version of the part | RFR | Production | × |
|---|---|---|---|
| Piston complete vs 450 SX-F piston | $1,541 | $292 | 5.3 |
| Piston ring set vs 450 SX-F ring kit | $308 | $93 | 3.3 |
| Crankshaft vs 450 EXC-F crank, same item 518 | $3,025 | $1,105 | 2.7 |
| Oil filter cover | $88 | $34 | 2.6 |
| Water pump impeller one-piece aluminium vs two-piece plastic | $123 | $67 | 1.8 |
| Shift drum vs 450 EXC-F | $213 | $142 | 1.5 |
| Rocker arm vs 450 SX-F | $247 | $191 | 1.3 |
| Engine case | $2,223 | $1,993 | 1.1 |
| Cylinder head vs 450 SX-F | $1,066 | $955 | 1.1 |
| Flywheel rotor same number as the EXC-F | $534 | $534 | 1.0 |
RFR-only, with no production twin in the books: piston kit $1,541 · cylinder $963 · oil radiator $771 · oil adapter $339.
The blueprints
Same pictures, new labels
Part numbers can change. Drawings give the game away. Each link opens KTM's own drawing. The RFR drawings keep the production layout and spot numbers. KTM removed the rod kit (2), top-end kit (98) and bearing kit (99) boxes from the RFR crank drawing.
Case closed
Production parts that fit your RFR
And it is good news for RFR owners. Every "same part" above can come from a used 2016–2019 450 SX-F/XC-F, 450 EXC-F, 500 EXC-F or FX 450: bearings, seals, shims, primary gear, balancer, starter, cam drive, valves and springs, oil pump rotors and screens, the 2019–2020 gearbox, flywheel rotor and stator. Rally prices are only for the RFR-only and M parts.
